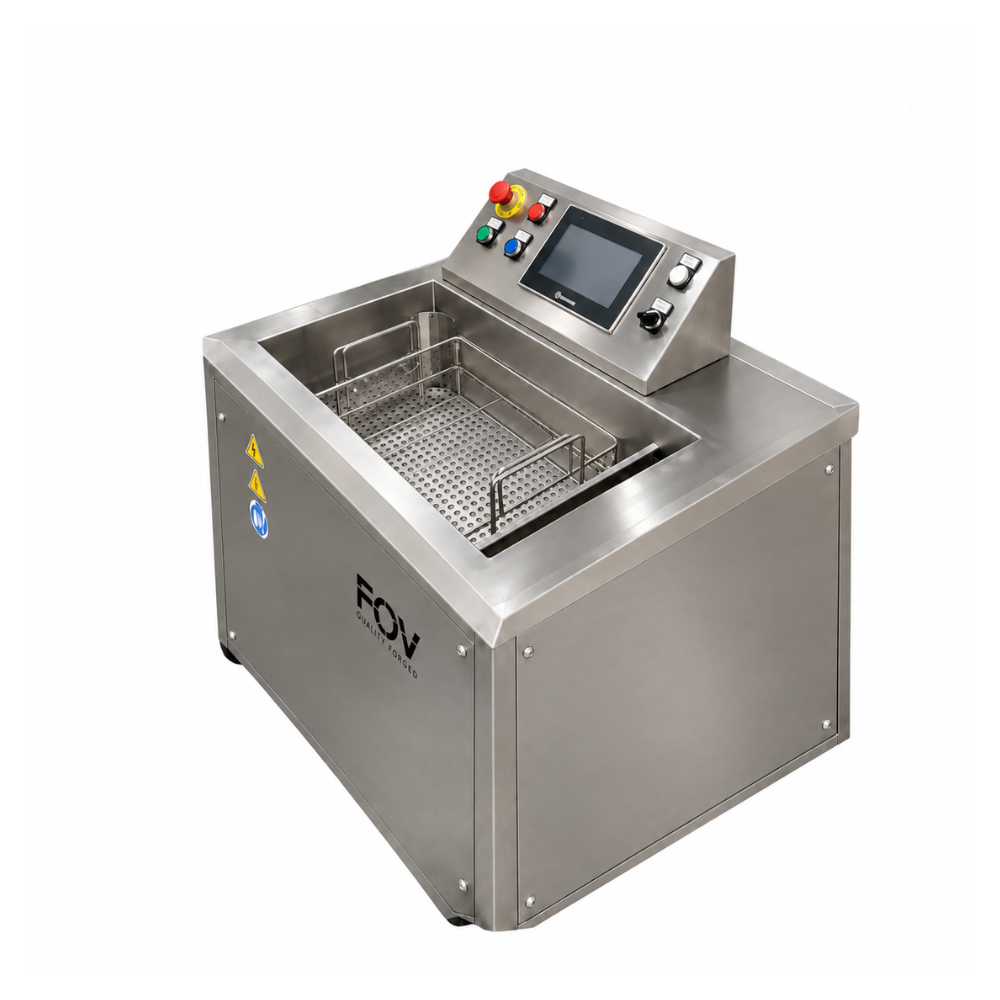

FOV-Eco Wax Cleaner

Semi-automatic Wax Removal Device

FOV-ECO WAX CLEANER is a semi-automatic wax removal device that combines temperature, ultra
sound, and mechanical agitation with the use of a completely safe, liquid detergent (FOV_EWR ECO WAX
REMOVER) – SDS available upon request.

Depending on the characteristics of the models to be treated, the temperature, ultrasound intensity, agi
tation intensity, and cycle duration can be freely set by the operator, or one of three available, userdefined
programs can be selected.

During treatment, the equipment does not require operator intervention, and once the selected job is com
pleted, it not only sends an end-of-cycle notification but also enters “hold” mode until the basket containing the models is removed.

Package includes:
• FOV-ECO WAX CLEANER machine
• Two stainless steel baskets with lids

Accessories:
• Organic solution FOV_EWR ECO WAX REMOVER 20 lt tank

Measures:
-Machine dimensions (L x P x H): 700 x 700 x 1.000 mm
-Weight: 120 kg
-Capacity: 30 Lt

Usage Features:
-Adjustable Heating: 0 – 50 °C
-Adjustable Timer: 30 – 60 – 90 min
-Ultrasonic system: Adjustable

Electrical Characteristics:
-Heating Power: 480 W
-Ultrasonic Power: 450 W – 9 Transd.
-Ultrasonic frequency: 38 KHz
-Pump Power: 0,25 KW
-Total Electric Power: 2.200 W
-Power supply voltage: 230 V – 50/60 A

Control:
-Screen LCD: Touch Screen 7’’
-Connectivity: Ethernet and WiFi

Others
-Machine Tank: Inox Steel
-Cover: Inox steel with handle
-Washing Liquid Drain System: 2 sinks G ½”
