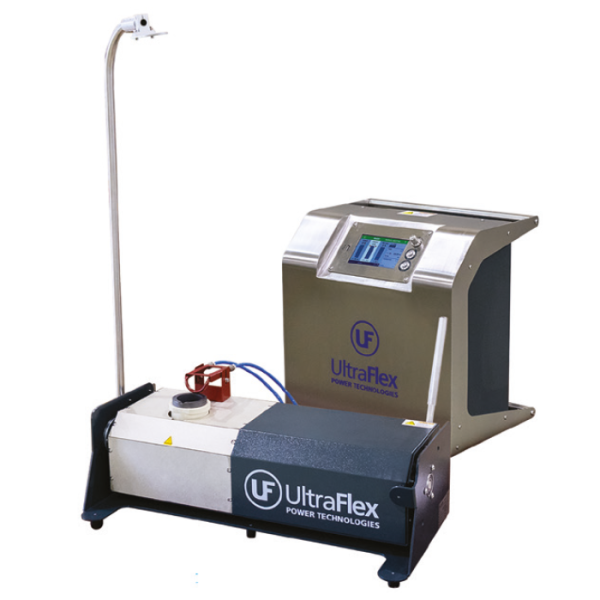

UltraMelt TLT – Compact tilting station
Efficient Melting for All Metal Types
UltraMeltTLT is a robust induction melting furnace, expertly designed for melting both precious and non-precious metals and alloys.
Advanced Circuit for Fast, Energy-Efficient Melting
This furnace features fast induction melting capabilities, thanks to an advanced RF circuit that optimizes energy consumption.
Designed for Compatibility with Powerful Generators
This tilting station is engineered to be compatible with Solo 12 kW and 16 kW induction generators.
Note on Configuration
Please note that the induction heating power supply is not included with the UltraMelt TLT and must be ordered separately. Ensure to select the appropriate power supply to meet your melting needs.
FEATURES
- Manual tilting mechanism.
- Optional Infrared Temperature reader for accurate temperature monitoring.
- Optional argon gas dispenser.
- Compatible with power generators of 12 kW and 16 kW, allowing selection based on production rate needs.
SPECIFICATIONS
| UltraMelt TLT-3P | UltraMelt TLT-5P | |
| AC Line, (50/60Hz), 3 Phases | 380V/480V ±10% | 380 V/480 V ±10% |
| Crucible Capacity | 4kg Gold, 2kg Pt | 6kg Gold, 3kg Pt |
| Melting Temperature (max) | 2000°( | 2000°( |
| Cooling Requirements
water system quoted upon request |
Water (External) | Water (External) |
| Temperature measurement | Infrared Pyrometer (optional) | Infrared Pyrometer (optional) |
| Weight | 15 kg (33 lb) | 15 kg (33 lb) |
| Dimensions, LxWxH | 78 x 40 x 30 cm
(30.7 X 15.7 X 11.8″) |
78 x 40 x 30 cm
(30.7 X 15.7 X 11.8″) |
| Compatible Power Supply | Solo 12, Solo 16 | Solo 12, Solo 16 |
