UltraMelt – Induction Melting Furnace
Induction melting machines are designed for all metal types and alloys, both precious and non precious. Available in diverse models to meet specific customer requirements, they comply with CE safety standards and incorporate essential safety features for secure operation.
Efficient Melting for All Metal Types

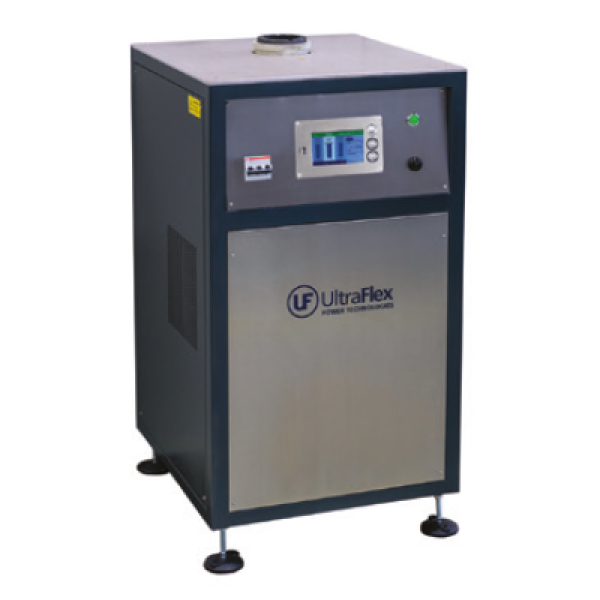

UltraMelt 12/16 is a robust induction melting furnace, expertly designed for melting both precious and non-precious metals and alloys.
Advanced Circuit for Fast, Energy-Efficient Melting This furnace features fast induction melting capabilities, thanks to an advanced RF circuit that optimizes energy consumption.
Configurable for Various Melting Needs
The flexible systems of UltraMelt 12/16 can be tailored to specific requirements, allowing for the melting of different metals and alloys to suit diverse needs.
Precise Temperature Control
Equipped with a temperature control mechanism, including a thermocouple probe or an optional IR pyrometer, UltraMelt 12/16 ensures safe and effective melting without the risk of overheating or metal burning.
FEATURES
- Power regulation from 10 – 100%, with a power bar-graph indicator.
- Advanced digital controls, featuring service and diagnostic capabilities.
- Temperature controller, compatible with a thermocouple probe or an optional IR pyrometer.
- Optional transformer available for 3-phase/230V AC line requirements.
SPECIFICATIONS
| UM-12GH | UM-12U | UM-16G | UM-16U | |
| Power (max) | 12kW | 12kW | 16kW | 16kW |
|
AC Line, (50/60Hz), 3 Phases |
380 V/480 V ±10% | 380 V/480 V ±10% | 380 V/480 V ±10% | 380 V/480 V ±10% |
| Optional 230VAC | Optional 230VAC | Optional 230VAC | Optional 230VAC | |
|
Crucible Capacity |
10 kg Au, 24kt |
8 kg Au, 24kt
*3 kg Pt *2 kg SS |
15 kg Au, 24kt |
10 kg Au, 24kt
*5 kg Pt *5 kg SS |
| Melting Temperature (max) | 1300°( | 2000°c | 1300°( | 2000°c |
| Cooling Requirements
water system quoted upon request |
Water (External) | Water (External) | Water (External) | Water (External) |
| Weight | 90 kg (198.4 lb) | 90 kg (198.4 lb) | 90 kg (198.4 lb) | 90 kg (198.4 lb) |
| Dimensions, LxWxH | 65 x55 x97 cm (25.6 X 21.7 X 38.2″) | 65x55x97cm (25.6 X 21.7 X 38.2″) | 65×55 x97 cm (25.6 X 21.7 X 38.2″) | 65 x55x97 cm
(25.6 X 21.7 X 38.2″) |
